Single Section Hanging Wall Cabinet with Glass Door Network Cabinet 4U Small Server Rack

Single section hanging wall cabinet with glass door · Model NO.: TN-008 · Usage: Network Integration System · Certification: CE, RoHS, GS · Color: Ral7035, Ral9004, etc · Packing Style: Assembled

Chat Now
Product Details

Single section hanging wall cabinet with glass door

· Model NO.: TN-008

· Usage: Network Integration System

· Certification: CE, RoHS, GS

· Color: Ral7035, Ral9004, etc

· Packing Style: Assembled

· Material: SPCC Cold Rolled Steel

· Trademark: TNE, OEM, ODM

· Specification: CE, RoHS

· HS Code: 8517709000

· Type: Network Cabinet

· Installation: Vertical

· Capacity: 4u to 27u

· Condition: New

· Logo: Silk Print, Aluminum Sticker, Rubber Sticker

· Shipping: Sea, Air, Train, Truck

· Certificate: Ce. RoHS

· Transport Package: Carton

· Origin: Ningbo China

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92 and ETSI standard

Features

This cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Single section structure - possible of max the load capacity up to 60KG.
Whole cabinet comes with convenient assembling way.
Widely used for Data cabling devices.

Doors
Front frame type glass door -cylinder key lock.
Rear solid metal panel (N/A).
Removable side panel with quick open latch.

Accessories
4* Position-adjustable 19" mounting rail.
1* Earthing cable
10 sets of extra M6 caged screws.

Cable entrance
Top  - 2 * 150*50mm cable entrance
Bottom - 2* 150*50mm cable entrance
Can ask for more...

Package
Neutral carton box packed
Plywood pallet for options

Varies specification upon customers' special requirements

Size suggestions
Width: 600,550 mm
Depth: 600,550,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM
Customized size is available
Flexible packing methods allows for convenient stocking and end user delivery.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Materials:SPCC cold rolled steel or EG steel

Thickness:Mounting profile:1.5mm,others:1.20mm to 1.50mm

IP degree: IP-20
Loading capacity:
Static loading: 60KG

Body color:RAL9004(black);RAL7035(grey),etc

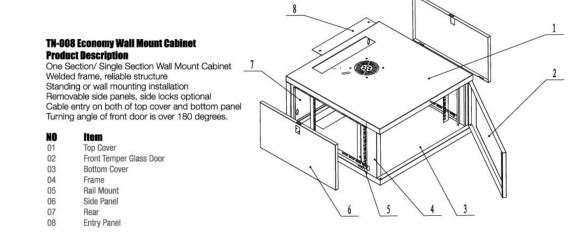

NO.

Part Name

QTY

Unit

Materials

Treatment

Note

1

Frame

1

Piece

1.0-1.2mm SPCC steel

Powder coating


2

Front Door

1

Piece

5mm transparent PERSPEX
     1.0-1.2mm SPCC steel

Powder coating

WINDOWS TYPE

3

Side Door

2

Piece

1.0-1.2mm SPCC steel

Powder coating

Plastic fastener

4

Back Paenl

1

Piece

1.0-1.2mm SPCC steel

Powder coating


5

Bottom

1

Piece

1.0-1.2mm SPCC steel

Powder coating


6

Top

1

Piece

1.0-1.2mm SPCC steel

Powder coating

Knock-off hole

7

Mounting Profile

4

Piece

1.5mm SPCC cold rolled steel

Powder coating

Can GE treated

8

Small lock

1

Piece

\

\

Front door

9

Earthing Bolt

1

Piece

\

\


10

Cable entrance

1

Piece

1.0-1.2mm SPCC cold rolled steel

Powder coating

Knock-off

11

M4&M5 cage

20

Set

Stainless steel

Powder coating


12

M6 Screw

20

Set

Stainless steel

Powder coating

10sets for extra

13

Quick open latcg

2

piece

Plastic

Powder coating

On side doors

Different doors option:


Packing and delivery :

Certificates:



Welcome to buy the high quality but cheap single section hanging wall cabinet with glass door network cabinet 4u small server rack from our factory. As one of the leading such manufacturers and suppliers in China, we will offer you low price. Check the quotation with us now.
