19'' US American type PDU socket rack mounted With switch
Item: | Specification: |
Product Name: | USA type PDU |
Product size: | 490(w)*66(h)*44(d)mm |
Model: | TN-301-31A |
Number of sockets: | 8 ways,6ways or 10ways |
Max output voltage: | 125V |
Max output current: | 15A |
Functions Control: | 1 Switch, with surge protection |
Hi-pot test: | PASS |
Operating Temperature: | 32F - 122F ( 0C - 50C ) |
Storage Temperature: | -20F - 140F ( -29C - 60C ) |
Material: | Uninflammable PC module, Aluminium alloy shell |
Product color: | Black |
Product size: | 19'' 1U |
Cable length: | 2M |
Method of application-mounting: | Portable type |
Mounting method: | Horizontal installation & Vertically |
Certification: | CE & RoHS |
Warranty: | 1 year |
Packaging: | 1 PC/BOX, 25 PCS/CTN |
Supplier: | Longtu |
Delivery: | Timely |
Features
Power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within a data center. Data centers face challenges in power protection and management solutions. This is why many data centers rely on PDU monitoring to improve efficiency, uptime, and growth.
PDUs vary from simple and inexpensive rack-mounted power strips to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN orSNMP.

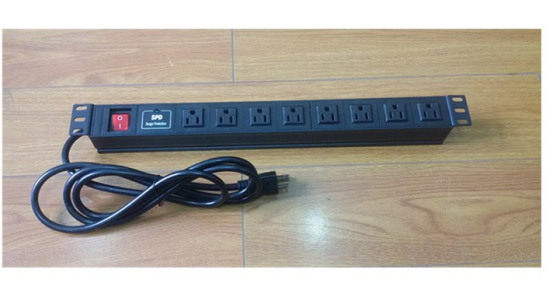

Below one is the used simple rack-mounted PDU for common power supply.
Features
19" 1U/1.5U standard PDU socket, with leak-current protector Aluminum-alloy shell,made from block burn PC Guage:3G 14AWG power cord + country-specific plug According to customer request, we could add AC or DC display Color: Black or silver Children safty protect. Braker protection, surged protected and fused for options. |

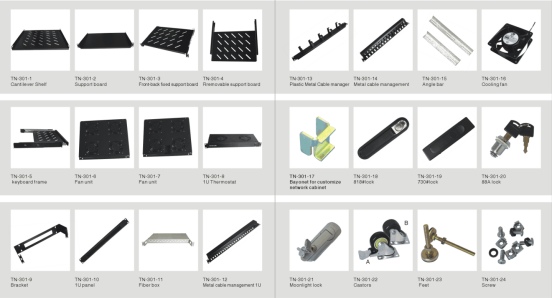

Other cabinet accessories
Packing and delivery
Certificates:
Welcome to buy the high quality but cheap 19'' us american type pdu socket rack mounted with switch from our factory. As one of the leading such manufacturers and suppliers in China, we will offer you low price. Check the quotation with us now.
